Overview

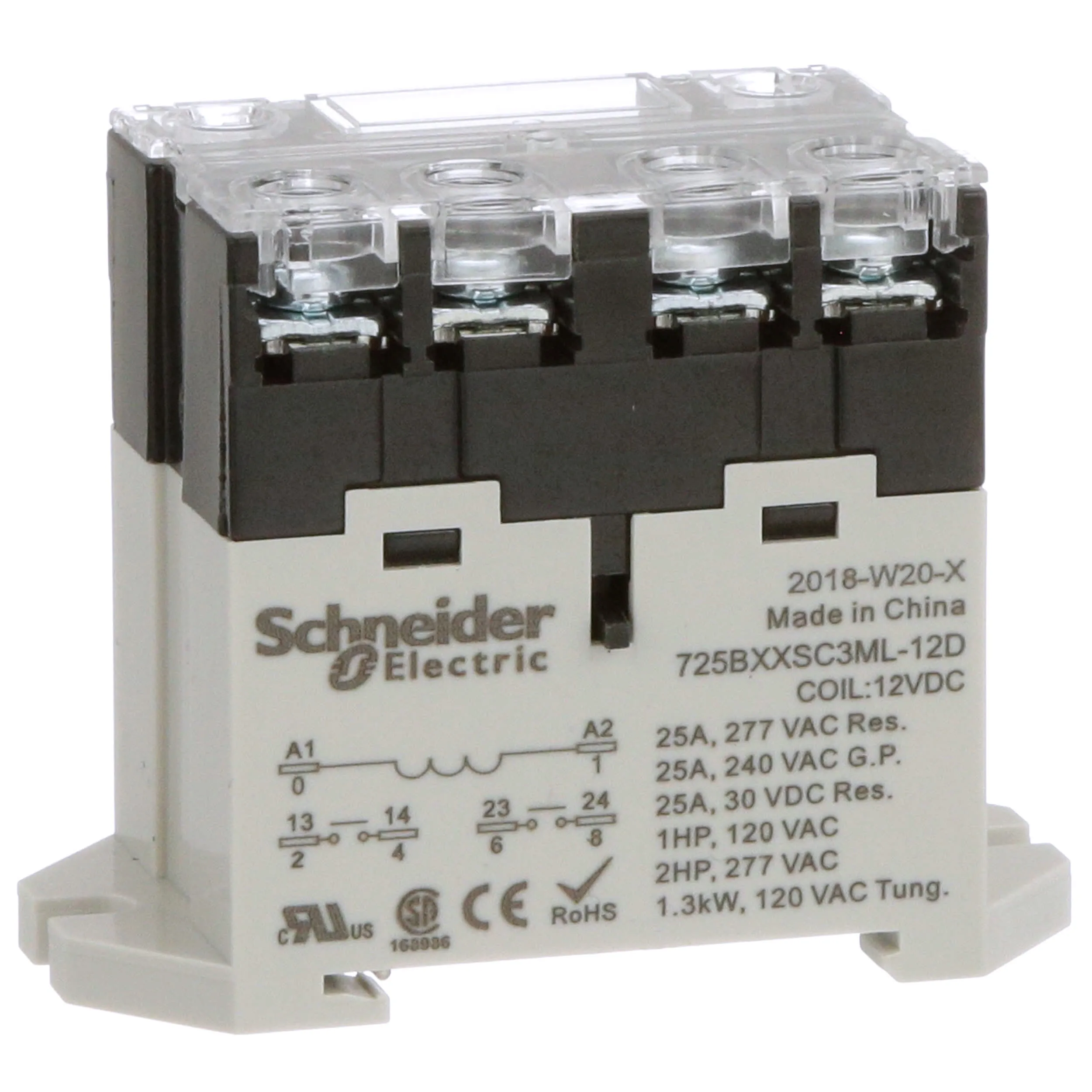

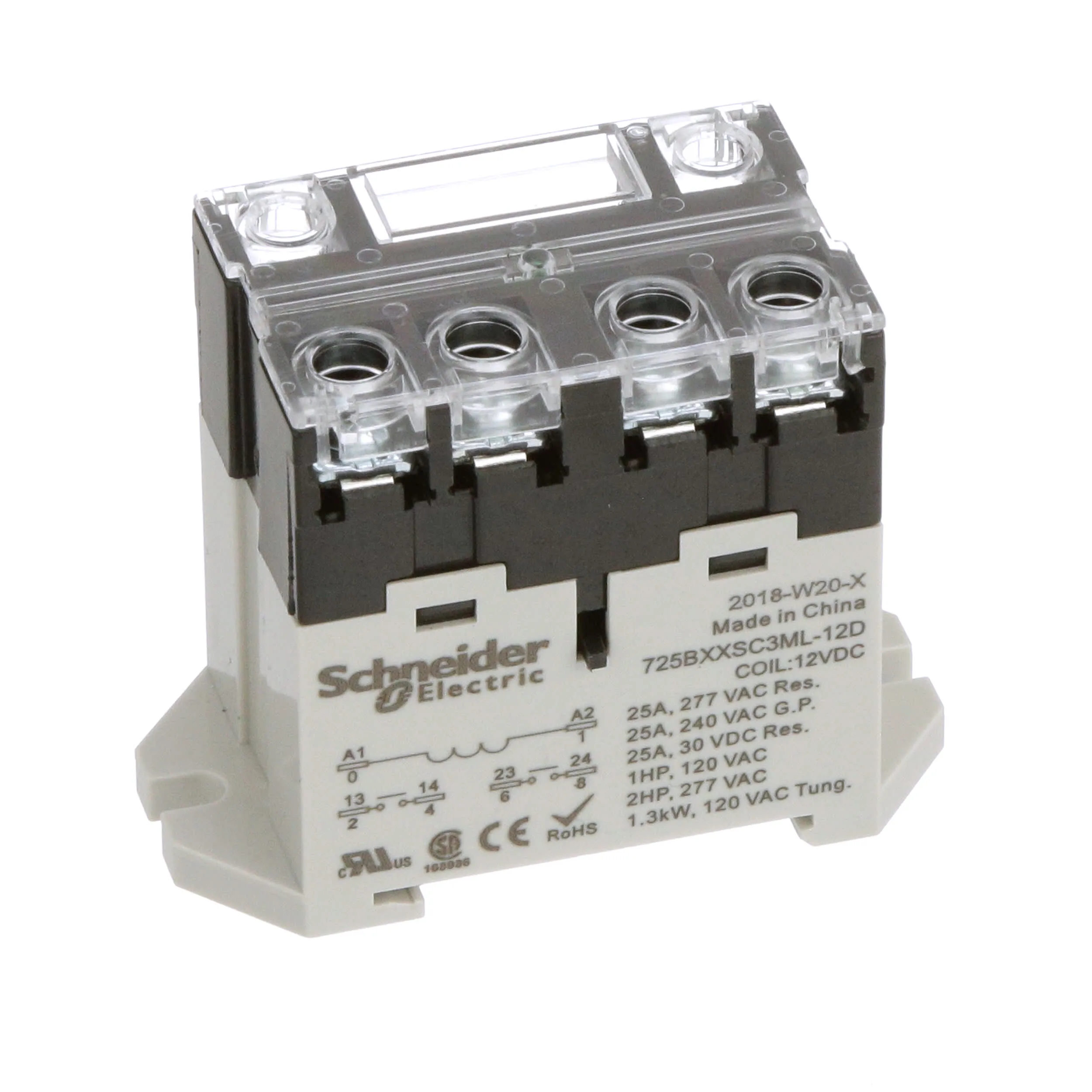

Schneider Electric/Legacy Relays 725 Series — SPST-NO, 30 A; DPST-NO, 25 A | Legacy Power Relays:

The 725 series power relays offer high-capacity switching with high dielectric voltage resistance capabilities.

Features:

High ratings (up to 30 A, 3 hp)

Meets demands for high power applications

4,000 V dielectric strength (coil to contacts)

Helps withstand severe voltage surges and spikes which provides protection for surrounding circuits

Multiple mounting options Helps to increase functionality and ease of use

Full-feature cover (Plug-in socket mount)

Offers push-to-test button, lock-down door, LED, flag indicators, and ID tag to simplify and expedite installation and testing

Fingersafe cover (on relays with screw terminals)

Helps prevent the operator from touching live circuits (IP20 degree of protection)

Accessories (for plug-in model):

70-ASM Modules
— Protects relay circuit from potentially damaging electrical spikes and inductive voltages
— Simplifies installation - additional wiring not needed
— Fits within the dimensions of the relay and socket

70-725-1 Socket
— 30 A, 300 V rating
— Finger-safe screw terminals
— DIN/Panel mountable
— Hold-down clip and Module compatible
— Optional ID tag (16-700ST-1)

16-725SC Clip
— Corrosion-free stainless steel
— Maintains good relay/socket connection in high vibration environments
— Allows easy installation and removal of the relay in tight spots
